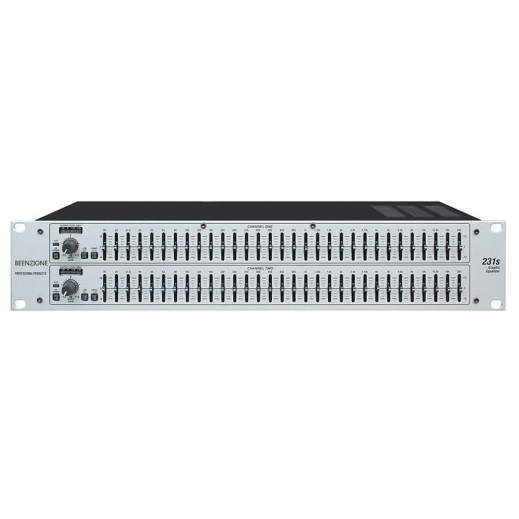

TRS or XLR differential balanced/unbalanced input and output
You can choose stereo or subwoofer formed by adding left and right channels
Both channels have× 10 Range Selection
Both channels have a 40Hz high pass filter (with low-frequency cutoff function)
The output power of all frequency bands can be independently adjusted
24dB/Linkwitz Riley filter (professional standard)
Power supply: 220V 24W
TRS or XLR differential balanced/unbalanced input and output
You can choose stereo or subwoofer formed by adding left and right channels
Both channels have a selection range of X 10
Both channels have a 40Hz high pass filter (with low-frequency cutoff function)
The output power of all frequency bands can be independently adjusted
24dB/Linkwitz Riley filter (professional standard)
Power supply: 220V 24W

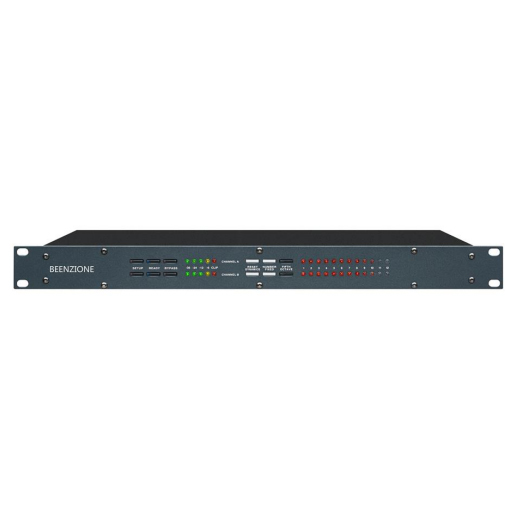

Filters: 12 independent digital notch filters per channel, ranging from 40Hz to 20KH
Automatic control of filter bandwidth: Users can control it, or it can be 1/10 octave band,
Or 1/5 octave band, constant Q value, resolution 1Hz
Time required to search for and eliminate feedback: 0.4 seconds, typical value 1KHz
The number of active filters and fixed filters per channel is selectable by the user, and the final configuration is stored in memory
Activity filter timer: The release time of the activity filter is 1, 5, 30, or 60 minutes
Input/Output: Maximum signal level for input/output: Balanced input/balanced output 27dBV, peak value,
Unbalanced input/output 21dBV, peak value
Output driver: The unit is designed to drive a load with a resistance greater than 600 Ω
Input impedance: Balanced or unbalanced input impedance>40K Ω, 2-pin high level
Output impedance: Balanced or unbalanced input impedance of 150 Ω, 2-pin high level
Side pass: Real power off side pass
Peak space: Typically 4dBV balanced input, with a maximum peak of 23dB
I/C connector: XLR-3 and 1/4 "TRS
Frequency response: 20Hz~20KHz, ± 0.3dB
Gain matching: ± 0.2dB
Spectrum changes: 0.25dB,20Hz～20KHz
Signal/Noise Dynamic Range:> 100dB
Total harmonic distortion: 0.005%, 1KHz; 20Hz～10KH,< 0.01%,10KHz～20KHz,< 0.025%
Dynamic range:> 105dB

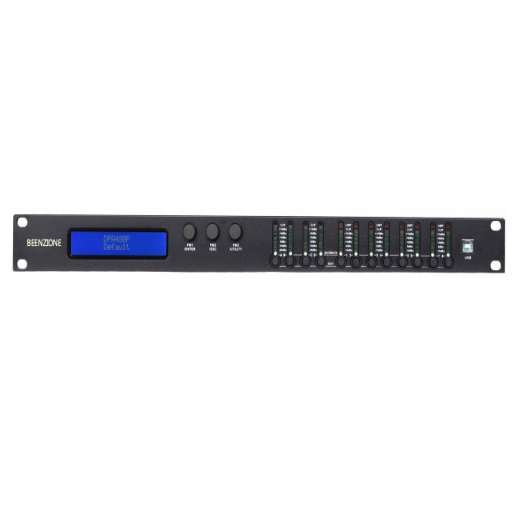

Analog input 4 x XLR balanced type
Analog output 8 x XLR balanced
Minimum load of 150 ohms
THD N distortion 0.001% at 1kHz 0dBu
S/N signal-to-noise ratio>100dBA
Frequency response 20Hz-20kHz- 0.5dBu at 20Hz and 20kHz
24 bit DSP processing for AD&DA conversion
DSP processing MARANI ® DSP, 24x32 bit filtering processing, 96 bit precision intermediate data operation result
The parameter equalizer input has 30 filters
Output with 7 filters
Filter types: Bell, High/Low Shaffer, High/Low Pass, Bandpass, Notch, and All Pass filters are optional
The gain range of the filter is:- 15dBu~15dBu, step accuracy: 0.5dBu
The input&output gain range is:- 18dB~12dB, step accuracy: 0.1dB
The center frequency can be adjusted with a step accuracy of 1Hz within the frequency range of 20Hz~20kHz
Filter Q-value/Broadband Shafer, High/Low Pass Filter Q-value: 0.1-5.1; Bell filter Q value: 0.4 ～ 128；
Bandpass, notch, and all pass filters with Q values ranging from 4 to 104
High and low-pass filtering Butterworth slope: 6/12/18/24dB/Oct
Bessel slope: 12/24/48Db/Oct
Linquets Raleigh: 12/24/48dB/Oct
Input noise threshold range:- 80dBu ～ -50dBu； Start control time: 1ms ～ 1000ms; Release time: 10ms ～ 1000ms
Enter RMS limiting threshold range:- 14dBu~16dBu, with adjustable bypass ratio of 2:1~32:1; Turning point range: 0%~100%; Supply range:- 12dB~12dB start time: 5ms ～ 200ms; Release time: 0.1 sec ～ 3 sec
Output peak voltage limit threshold range:- 14dBu~16dBu, optional start control time for bypass: 1ms ～ 900ms; Release time: 0.1 sec ～ 5 sec
Input/output channel polarity positive (0 °)/negative (180 °) optional
Input/output channel mute ON/OFF optional
Delay up to 420.998 ms per input channel, adjustable delay up to 128.998 ms per output channel. Summary
User preset parameters 24
Front panel 2x24 character LCD display
Input 7 lights to display [-20dBu to 15dBu]; Clipping]
Output 7 lights display [-15dBu to 15dBu; Clipping; Limitation: The output light can be used to display the output level or display the voltage limit
Blue LED light (edit) displays the status of each channel
Red LED light (mute) displays the status of each channel
NAV/PM1, PM2, PM3 are switches for selecting the rotary encoder menu
ENTER, ESC, UTILITY are button type potentiometer entry/exit/application switches
The EDIT/MUTE button allows for individual control and editing of each channel
B-type USB interface
Rear board 4 x XLR female connector (input)
8 x XLR male connector (output)
2 x RS485 connectors
1 x Grounding/Suspension toggle switch
IEC C13 16A power socket; Ship shaped power switch
AC power supply suitable for power supply: 90-240VAC (50/60Hz) – 40W
Size 19 "x 1.75" x 9 "(482 x 44 x 229 mm) 1RU
Net/gross weight 7.71 lbs (3.5kg)/8.82 lb (4kg)

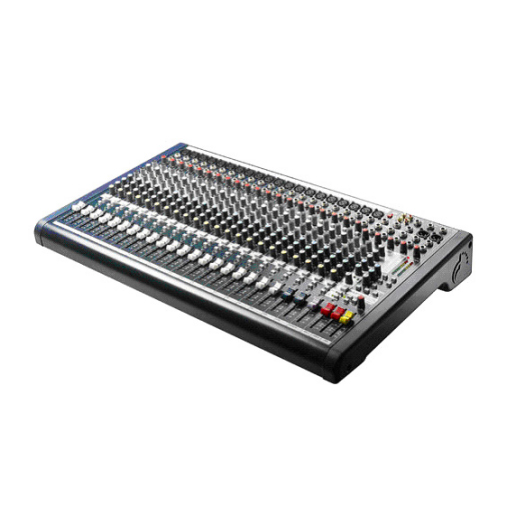

Mixing console input channel specification 20
Built in Lexicon 24 bit effects processor
Precision GB30 microphone preamplifier
Provide a truly professional 48V phantom power supply for condenser microphones
Two sets of busbar
Stereo mixing output
AUX can switch to either before or after the pusher when sending everything
FX sends 1
Built in universal power supply
Optional rack installation accessories
