Two frequency full frequency inverted professional enclosure design speaker

Two 8-inch high-power mid low frequency speakers

The rich and powerful bass is suitable for point compensation in multifunctional halls, performance soundtracks, reverberations, KTVs, and other venues

The sturdy honeycomb shaped steel mesh protects the horn from external impact, and the external cotton is dust-proof and aesthetically pleasing

The box is made of high-density plywood

Acoustic shock absorbers enhance safety and improve sound quality

Natural and balanced tone

System composition: 8 "One Road, Two Units

Rated impedance: 4 Ω

Power: 360W RMS, 500W PEAK

Sensitivity:（ 1W@1M ）:98db

Maximum sound pressure level: 124db

Coverage angle (horizontal x vertical): 120 °× 120 °

Frequency response range: 35Hz---50KHz

Speaker size (height x width x depth): 236 x 500 x 350

Two frequency full frequency inverted professional enclosure design speaker

Two 8-inch high-power mid low frequency speakers

Two frequency full frequency inverted professional cabinet design speaker with built-in frequency divider

Two 6.5-inch high-power mid low frequency speakers

A 1.7-inch neodymium magnetic high-frequency speaker with a voice coil

The rich and powerful bass and high-definition treble are suitable for multifunctional halls, conference rooms, teaching and other places

The sturdy honeycomb shaped steel mesh protects the horn from external impact, and the external cotton is dust-proof and aesthetically pleasing

The box is made of high-density plywood

Acoustic shock absorbers and innovative suspension components enhance safety and improve sound quality

Natural and balanced tone

System composition: 6.5 "two-way three unit

Rated impedance: 8 Ω

Power: 350W RMS, 600W PEAK

Sensitivity:（ 1W@1M ）:103db

Maximum sound pressure level: 128db

Coverage angle (horizontal x vertical): 90 °× 12 °

Frequency response range: 40Hz-20KHz

Speaker size (height x width x depth): 196 x 500 x 200

Two frequency full frequency inverted professional cabinet design speaker with built-in frequency divider

Two 6.5-inch high-power mid low frequency speakers

A 1.7-inch neodymium magnetic high-frequency speaker with a voice coil

Equipped with an active DSP amplifier module, it not only provides strong power output guarantee, but also offers precise DSP digital processing services tailored to the characteristics of the speaker and the on-site environment. The bass is more abundant, thick and powerful

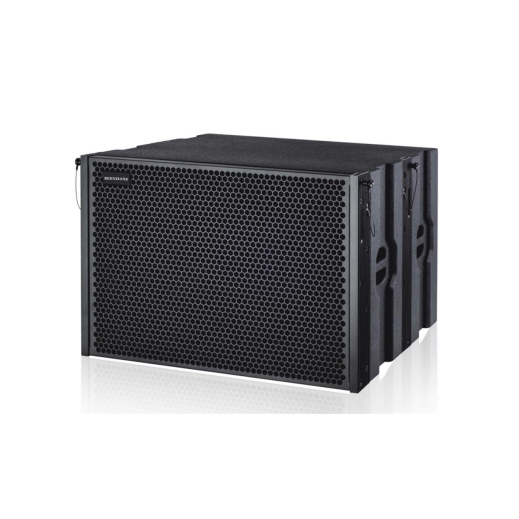

A single 18 inch ultra-low frequency speaker specially designed to be used in conjunction with the β -808HP linear array audio system. The box adopts a direct beam design, which converts the sound energy behind the speaker paper tray inside the speaker into phase and superimposes it with the energy in front, improving the efficiency of the speaker. The conversion efficiency is relatively high, and the lower limit of low frequency is relatively low. The system is equipped with a high-power 18 inch 100 core ultra-low frequency speaker unit, which comes with an active DSP amplifier module that not only provides strong power output guarantee, but also provides fine DSP digital processing services based on the characteristics of the speaker and the on-site environment. The bass is more abundant, thick and powerful. When combined with β -808HP, it can form a high sound pressure level, smooth and powerful sound, and adjustable full frequency response range.
Frequency response: 35Hz-300Hz

Sensitivity（ 1W@1m )：100dB

Nominal impedance: 8 Ω

Rated power: 800 W AES, 3200W peak

Bass Unit: 1 × 18 "(460mm)/4" voice coil

Maximum sound pressure level: 128dB continuous, 134dB peak

Connection socket: 2 x Speakon NL4

Net weight: 45kg

Dimensions (W × D × H): 725mm × 600mm × 503mm

The built-in active DSP amplifier module not only provides strong power output guarantee, but also provides fine DSP digital processing services for speaker characteristics and on-site environment, with high sound pressure level, wide frequency extension, and clear and delicate sound

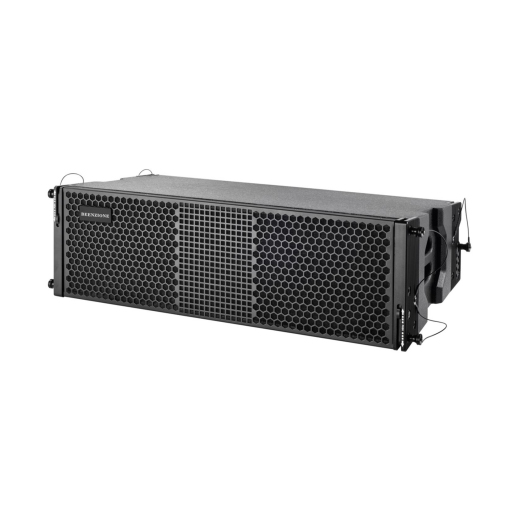

The β -808HP linear array speaker is a small to medium-sized two-way crossover system that provides a frequency range of 55Hz-20KHz. The system uses a 75 core composite film compression tweeter and two 8-inch subwoofers with extremely large dynamic margins. Linear array speakers have smooth frequency and phase response. The built-in active DSP amplifier module not only provides strong power output guarantee, but also provides fine DSP digital processing services for speaker characteristics and on-site environment, with high sound pressure level, wide frequency extension, and clear and delicate sound.



Frequency response: 55Hz-20KHz

Sensitivity（ 1W@1m )：99dB  (passive mode)

HF 112dB  LF 99dB  (Bi-amp mode )

Nominal impedance: 16 Ω

Rated power: HF 75W AES，300W peak (Bi-amp mode)

LF 350W AES，1400W peak (Bi-amp mode)

Bass Unit: 2 × 8 "(200mm)/2" voice coil

High frequency unit: 1 × 1.5 "(38mm)/3" voice coil

Diffusion angle: 120 °× 15 ° (H × V)

Maximum sound pressure level: 126dB continuous, 132dB peak

Connection socket: 2 x Speakon NL4

Net weight: 27.5kg

Dimensions (W × D × H): 725mm × 370mm × 235mm
